Evolution in Non-Nuclear Density Measurement
The definitive alternative to nuclear technology has evolved. Rhosonics presents the new SDM ECO: 100% radiation-free, with enhanced robustness and a redesigned user experience.
Rhosonics presents the evolution of non-nuclear density: SDM ECO
SDM ECO Slurry Density Meter
After the global success of the original SDM as the definitive alternative to nuclear technology, the new SDM ECO (Slurry Density Meter ECO) arrives. This new generation maintains the proven ultrasonic technology but completely redesigns the user experience and robustness.

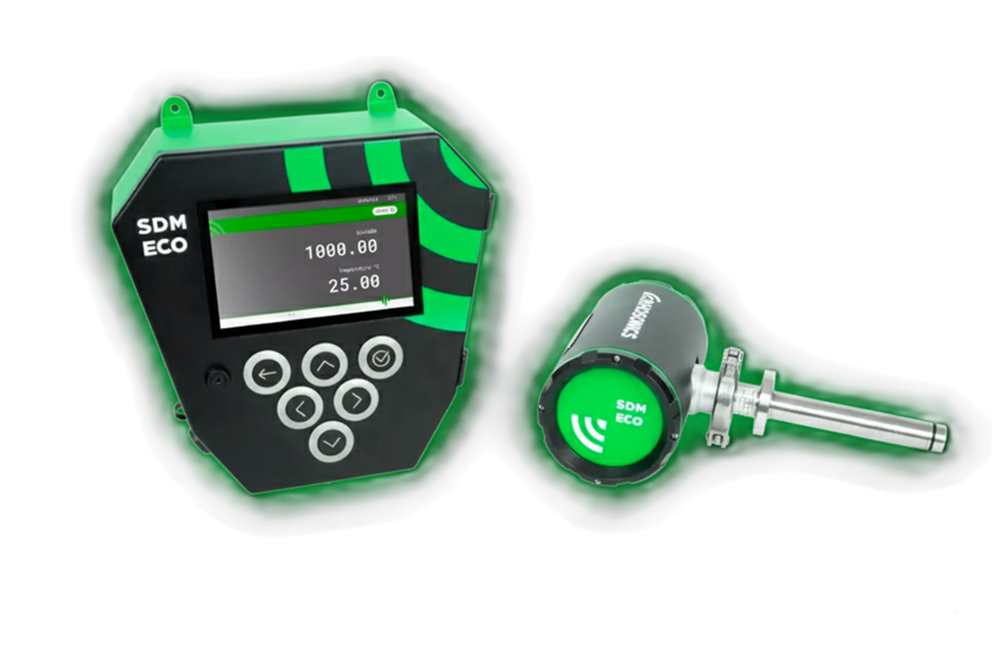

The SDM ECO incorporates a new Control Unit (HMI) with a 7" touch screen, a lighter transmitter and powerful multipoint calibration algorithms, offering superior precision and unmatched stability in the most abrasive conditions, all 100% radiation-free.
Industries and Applications
The SDM ECO is the standard for density measurement in heavy industries.

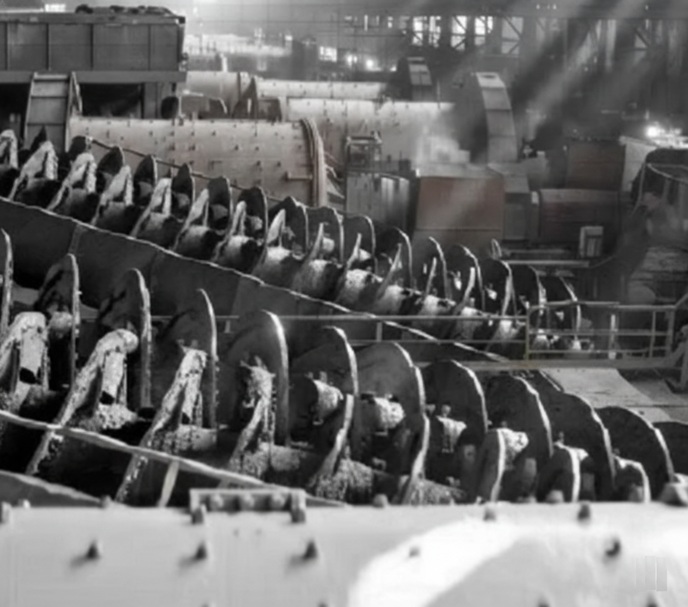

Mining and Mineral Processing
Thickeners, flotation cells, and hydrocyclone feed/discharge lines.

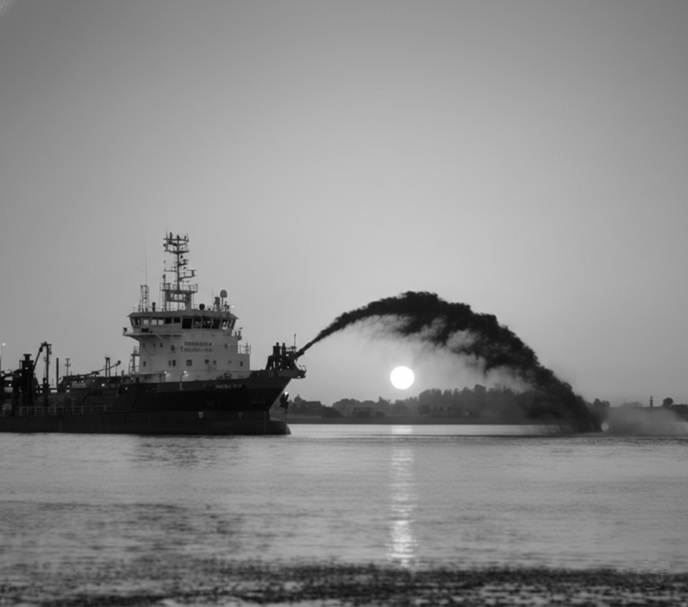

Dredging
Production monitoring in suction and discharge pipelines and cut efficiency control.

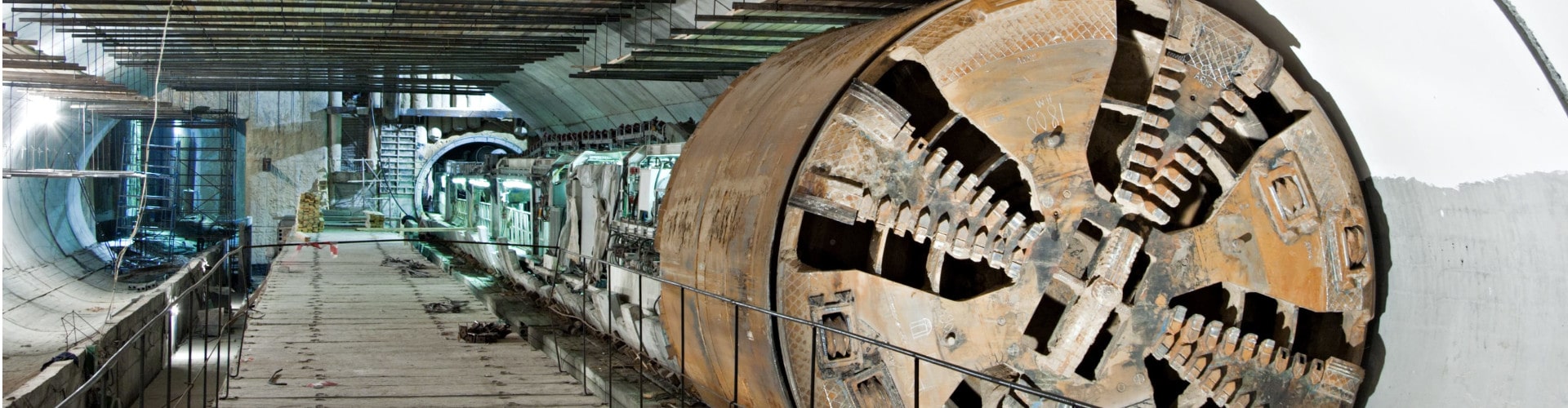

Building Materials and Tunneling
Bentonite and drilling slurries, cement and concrete plants.
What's New in ECO
Technological improvements redefining field performance.

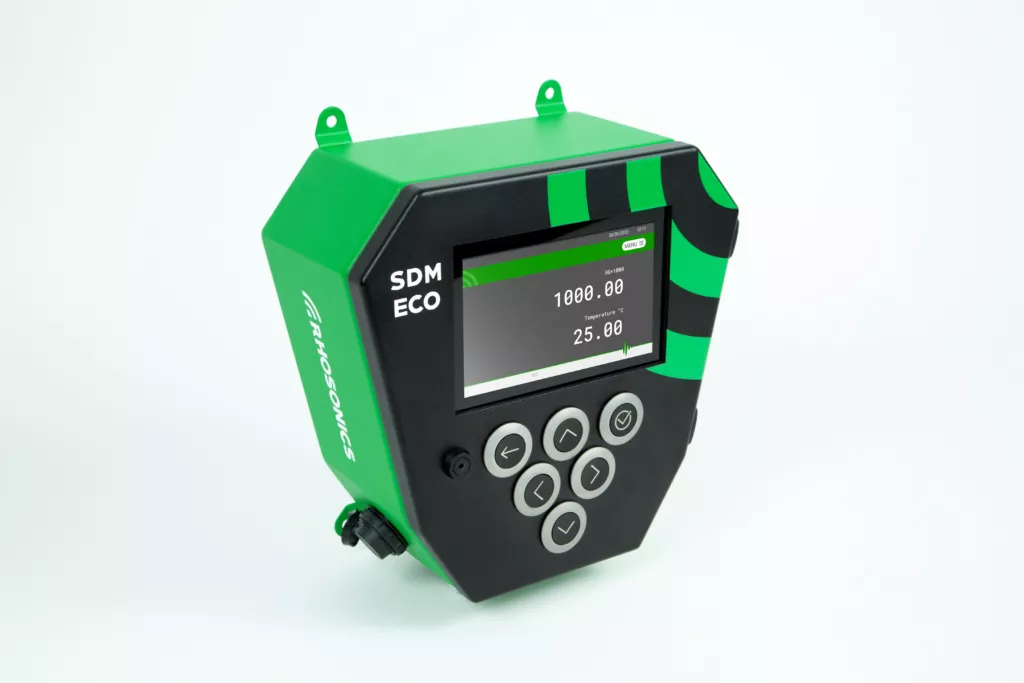

Touch Interface (HMI)
7" color touch screen with coated 316 stainless steel housing (IP65).

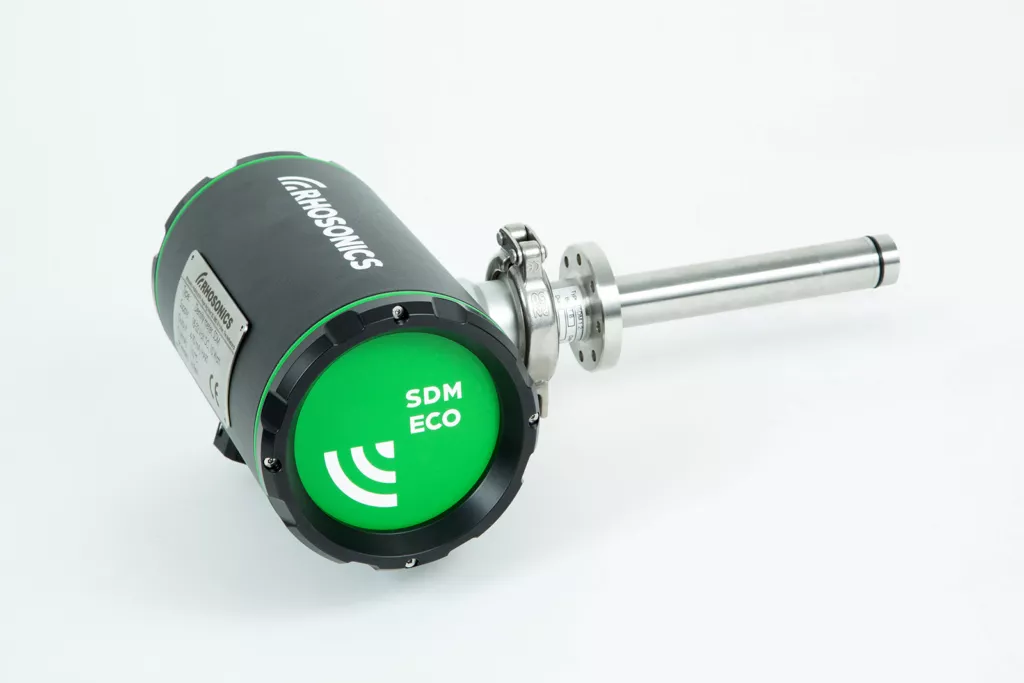

Advanced Hybrid Sensor
Combining Ceramic and Duplex 2205 for maximum durability and strength.

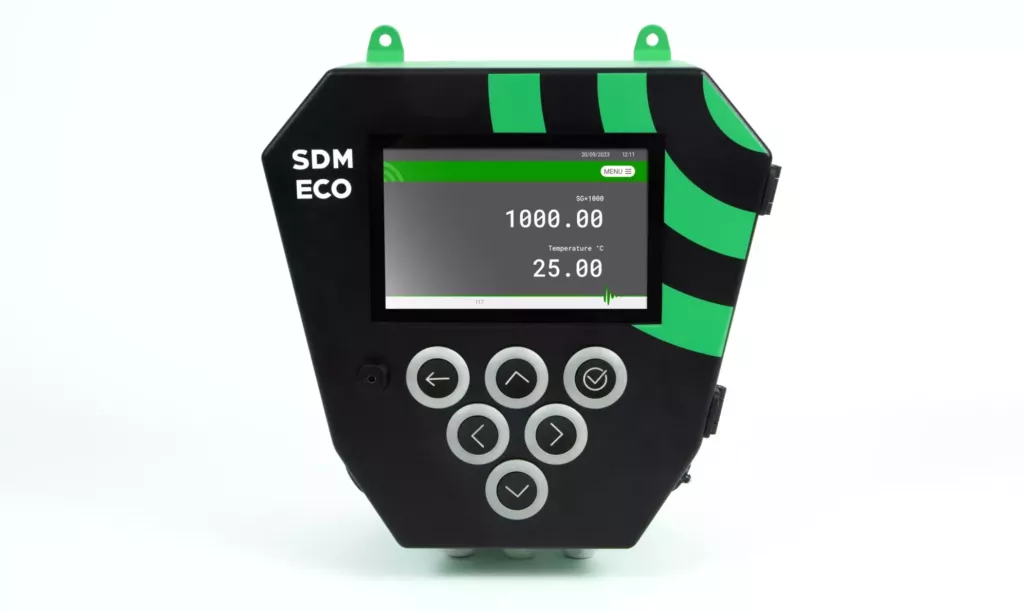

"Super Profile" Calibration
New software allowing multipoint calibration for superior stability.
Installation Methods
Total integration into any pipeline (from 1" to 60").

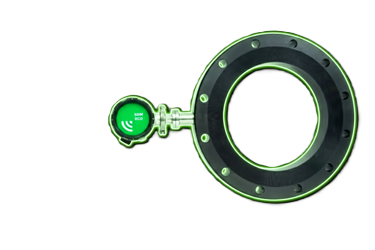

UWC Wafer
Synthetic (UHPE) or steel (316/304/904) ring installed between flanges. Ideal for 4" to 60" pipes.
Weldolet
Low-cost solution for unlined steel pipes. A base is welded directly onto the pipe.

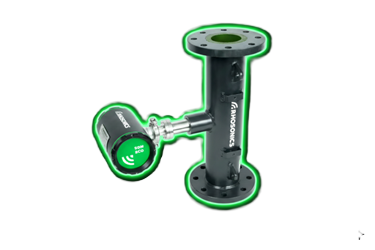

Spools (UFTP & FDSC)
Complete pipe spools (Metal or HDPE) with pre-installed sensor. For 1" to 20" pipes.

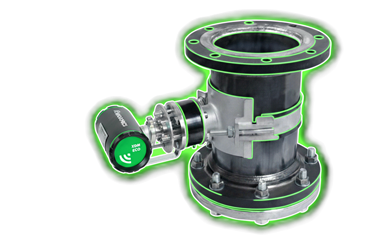

Clamp-in (New in ECO)
External clamp for fast installation in existing pipes without complex flange welding.
Features and Benefits
How it works
The SDM ECO measures the Acoustic Impedance of the slurry using ultrasonic pulses.
Z = ρ × c
Where: Z = Acoustic Impedance, ρ = Density, c = Speed of Sound
